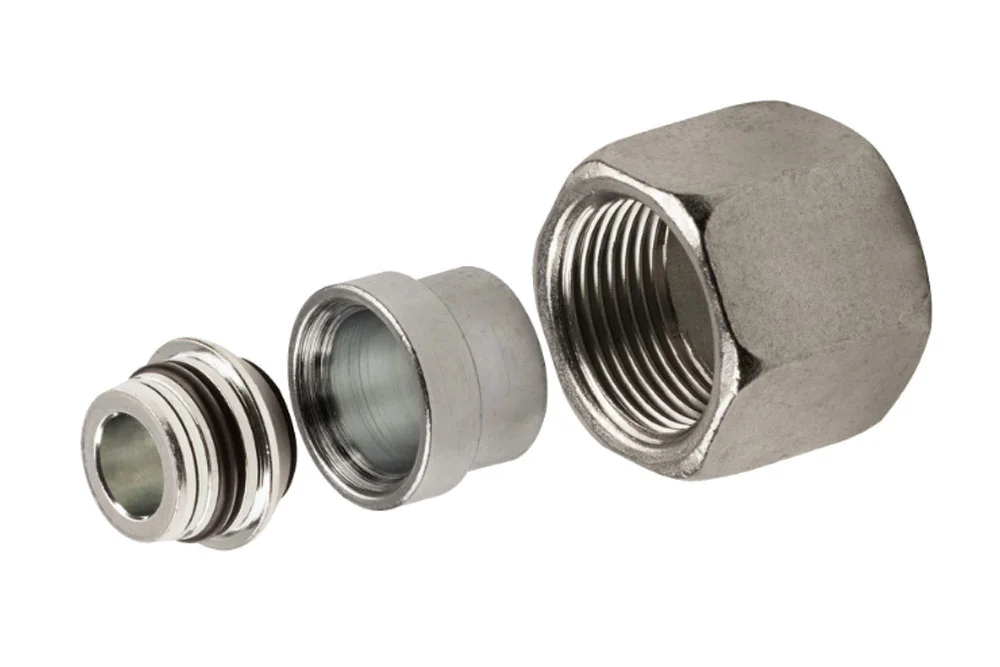

DIN2353 Walterscheid™ kobling med mutter og JIC-hylse, karbonstål
DIN2353 Walterscheid™ kobling med metrisk gjenge og JIC-hylse, o-ring tetning. Tilgjengelig som: L (lett serie), S (tung serie). Materiale: karbonstål, med galvanisk belegg Guardian Seal™.
Liste over produktvarianter
| Artikkelnummer | Produktvariantnavn | Nominal indre diameter | Arbeidstrykk [bar] | Forespørsel |
|---|---|---|---|---|
| HD-HJ-06L-W | DIN2353/JIC kobling + mutter 6L (M12x1,5) + JIC hylse | - | 500 | |
| HD-HJ-06S-W | DIN2353/JIC kobling + mutter 6S (M14x1,5) + JIC hylse | - | 630 | |
| HD-HJ-08L-W | DIN2353/JIC kobling + mutter 8L (M14x1,5) + JIC hylse | - | 500 | |
| HD-HJ-08S-W | DIN2353/JIC kobling + mutter 8S (M16x1,5) + JIC hylse | - | 630 | |
| HD-HJ-10L-W | DIN2353/JIC kobling + mutter 10L (M16x1,5) + JIC hylse | - | 500 | |
| HD-HJ-10S-W | DIN2353/JIC kobling + mutter 10S (M18x1,5) + JIC hylse | - | 630 | |
| HD-HJ-12L-W | DIN2353/JIC kobling + mutter 12L (M18x1,5) + JIC hylse | - | 400 | |
| HD-HJ-12S-W | DIN2353/JIC kobling + mutter 12S (M20x1,5) + JIC hylse | - | 630 | |
| HD-HJ-14S-W | DIN2353/JIC kobling + mutter 14S (M22x1,5) + JIC hylse | - | 630 | |
| HD-HJ-15L-W | DIN2353/JIC kobling + mutter 15L (M22x1,5) + JIC hylse | - | 400 | |
| HD-HJ-16S-W | DIN2353/JIC kobling + mutter 16S (M24x1,5) + JIC hylse | - | 630 | |
| HD-HJ-18L-W | DIN2353/JIC kobling + mutter 18L (M26x1,5) + JIC hylse | - | 400 | |
| HD-HJ-20S-W | DIN2353/JIC kobling + mutter 20S (M30x2) + JIC hylse | - | 400 | |
| HD-HJ-22L-W | DIN2353/JIC kobling + mutter 22L (M30x2) + JIC hylse | - | 250 | |
| HD-HJ-25S-W | DIN2353/JIC kobling + mutter 25S (M36x2) + JIC hylse | - | 400 | |
| HD-HJ-28L-W | DIN2353/JIC kobling + mutter 28L (M36x2) + JIC hylse | - | 250 | |
| HD-HJ-30S-W | DIN2353/JIC kobling + mutter 30S (M42x2) + JIC hylse | - | 400 | |
| HD-HJ-35L-W | DIN2353/JIC kobling + mutter 35L (M45x2) + JIC hylse | - | 250 | |
| HD-HJ-38S-W | DIN2353/JIC kobling + mutter 38S (M52x2) + JIC hylse | - | 400 | |
| HD-HJ-42L-W | DIN2353/JIC kobling + mutter 42L (M52x2) + JIC hylse | - | 250 |
