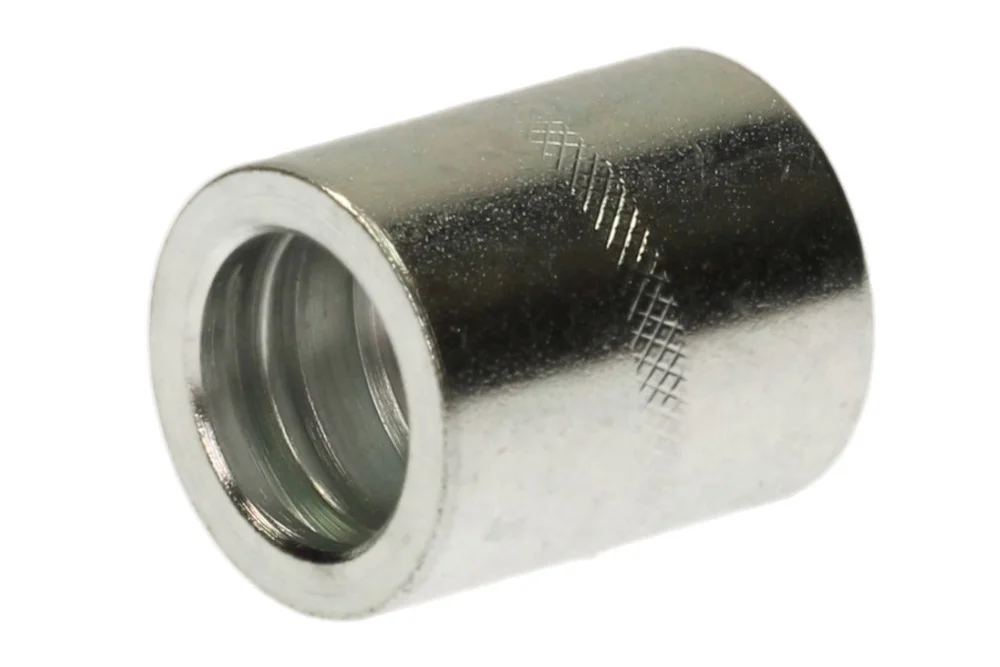

Klemhylse for termoplastslanger R6, R7, R8, karbonstål, type BX7
Klemhylse BX7 for termoplastslanger type R6, R7 eller R8. Montering – uten skjæring. Diameter D1 [mm] – utvendig diameter. Diameter D2 [mm] – innvendig diameter. Diameter D3 [mm] – låsediameter. Materiale: karbonstål, galvanisert.
Liste over produktvarianter
| Artikkelnummer | Produktvariantnavn | Nominal indre diameter | Arbeidstrykk [bar] | Forespørsel |
|---|---|---|---|---|
| MC-BX7-03 | BX7 hylse for 3/16" slange (R6, R7, R8) | 5 | - | |
| MC-BX7-04 | BX7-hylse for 1/4" slange (R6, R7, R8) | 6 | - | |
| MC-BX7-05 | BX7-hylse for 5/16" slange (R6, R7, R8) | 8 | - | |
| MC-BX7-06 | BX7 hylse for 3/8" slange (R6, R7, R8) | 10 | - | |
| MC-BX7-08 | BX7-hylse for 1/2" slange (R6, R7, R8) | 12 | - | |
| MC-BX7-10 | BX7 hylse for 5/8" slange (R6, R7, R8) | 16 | - | |
| MC-BX7-12 | BX7 hylse for 3/4" slange (R6, R7, R8) | 20 | - | |
| MC-BX7-16 | BX7-hylse for 1" slange (R6, R7) | 25 | - |
Tilleggsinformasjon
| Materiale | CS – stål (støpejern) |
|---|
